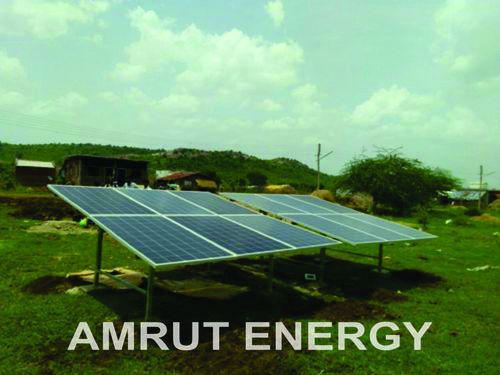

Amrut 3 HP Solar Pump

150000 INR/Piece

Get a Price/Quote

Product Details:

Product Type Polycrystalline Silicon
Material SS
Number of Cells 60
Power 3000 Watt (w)
Max Voltage 360 Volt (V)
Max System Voltage 600 Volt (V)
Output Voltage 230 Volt (V)
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Price And Quantity

Minimum Order Quantity 1 Piece
Price 150000 INR/Piece

Product Specifications

Power 3000 Watt (w)
Product Type Polycrystalline Silicon
Material SS
Output Voltage 230 Volt (V)
Max Voltage 360 Volt (V)
Color Blue
Max System Voltage 600 Volt (V)
Warranty 2 YEARS
Number of Cells 60

Trade Information

Payment Terms Cash Against Delivery (CAD)
Supply Ability 30-40 Piece Per Week
Delivery Time 7-10 Days
Main Export Market(s) Asia
Main Domestic Market All India
Certifications MNRE

Product Description

Amrut 3 HP Solar Pump Specification

Make	AMRUT
Model	V4 Solar Submersible pump/Radial flow /Water Filled
HP/KW	3 HP / 2.2 Kw
		Stage	15
		Voltage	230 V
(THREE PHASE)
Mechanical Watt	2700 W
Discharge outlet	1.5
(In Inch)
Head	50 meter
(in meters)
Discharge in LPM	120 LPM
Shut Off Head	80 meter
Overall efficiency	54.90%
Outer Dia.	95 mm
Maximum AMP	8.0 A
Size of cable	1 x 3 x 2.5 sq.mm
RPM	2800
Impeller	Noryl
Stage casting	Noryl
Pump Jacket	SS
Pump Bearing Bush	Leaded Bronze
Pump Shaft	SS 410
Suction brakcet	Cast Iron
Pump Hardware	SS 304
Motor Shaft	SS 410
Motor Bearing Bush	LTB 5 Grade
Thrust bearing	SS 410
Lower & upper housing	Cast Iron
Stator shell	SS
Winding Wire	copper
Motor Hardware	SS 304

Other Products in 'Solar Pump Kit' category

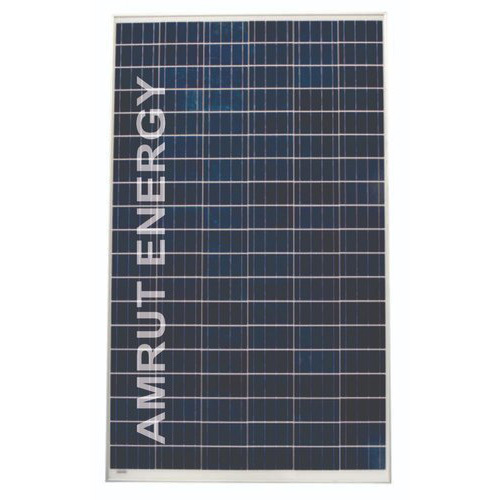

310W Solar PV Module Power : 310 Watt (w) Warranty : 1025 Years Minimum Order Quantity : 1 Price : 8680 INR/Piece Product Type : Polycrystalline Silicon Material : Silicon, Aluminium Max System Voltage : 37 Volt (V) Max Voltage : 37.82 Volt (V) Number of Cells : 72 Operating Temperature : 40 to 85 Celsius (oC) Color : Blue
